Description

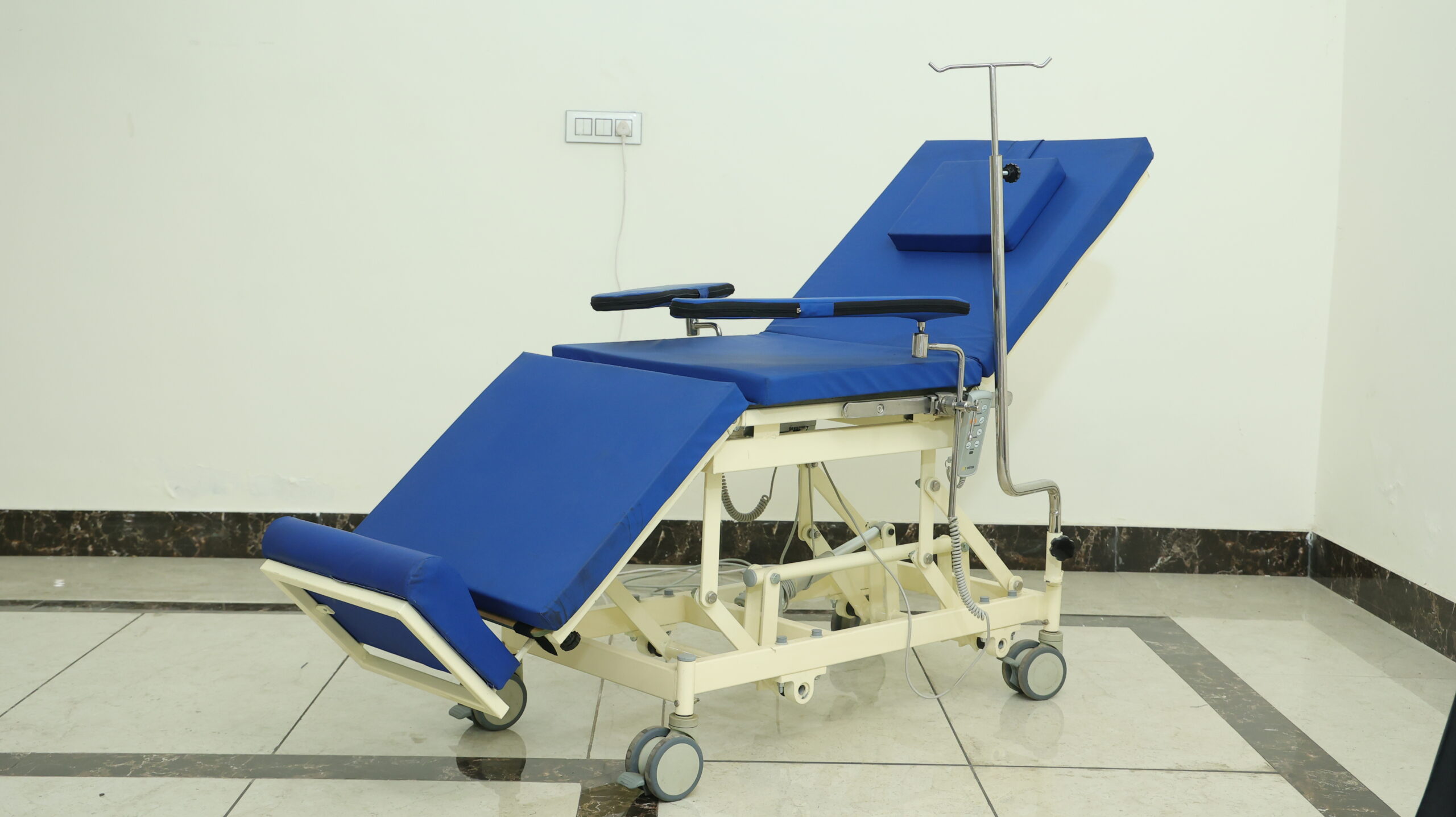

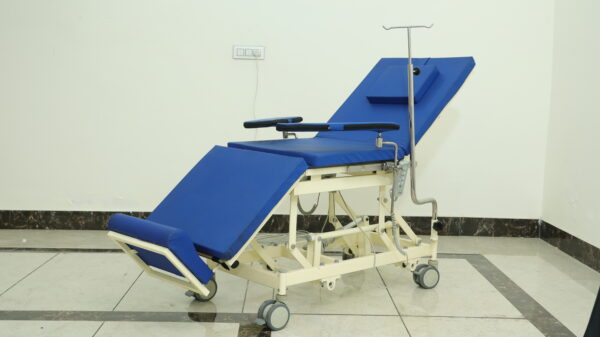

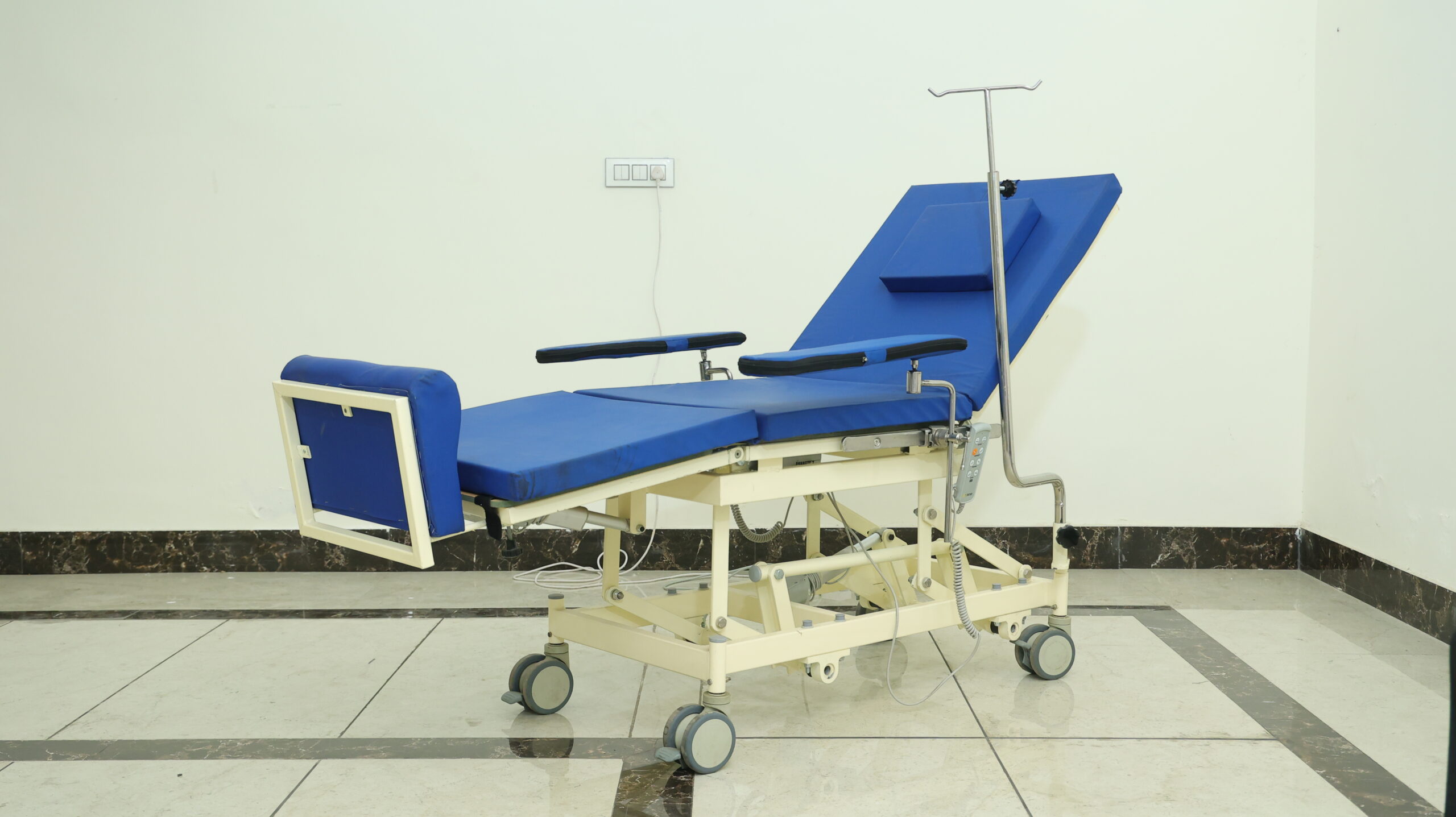

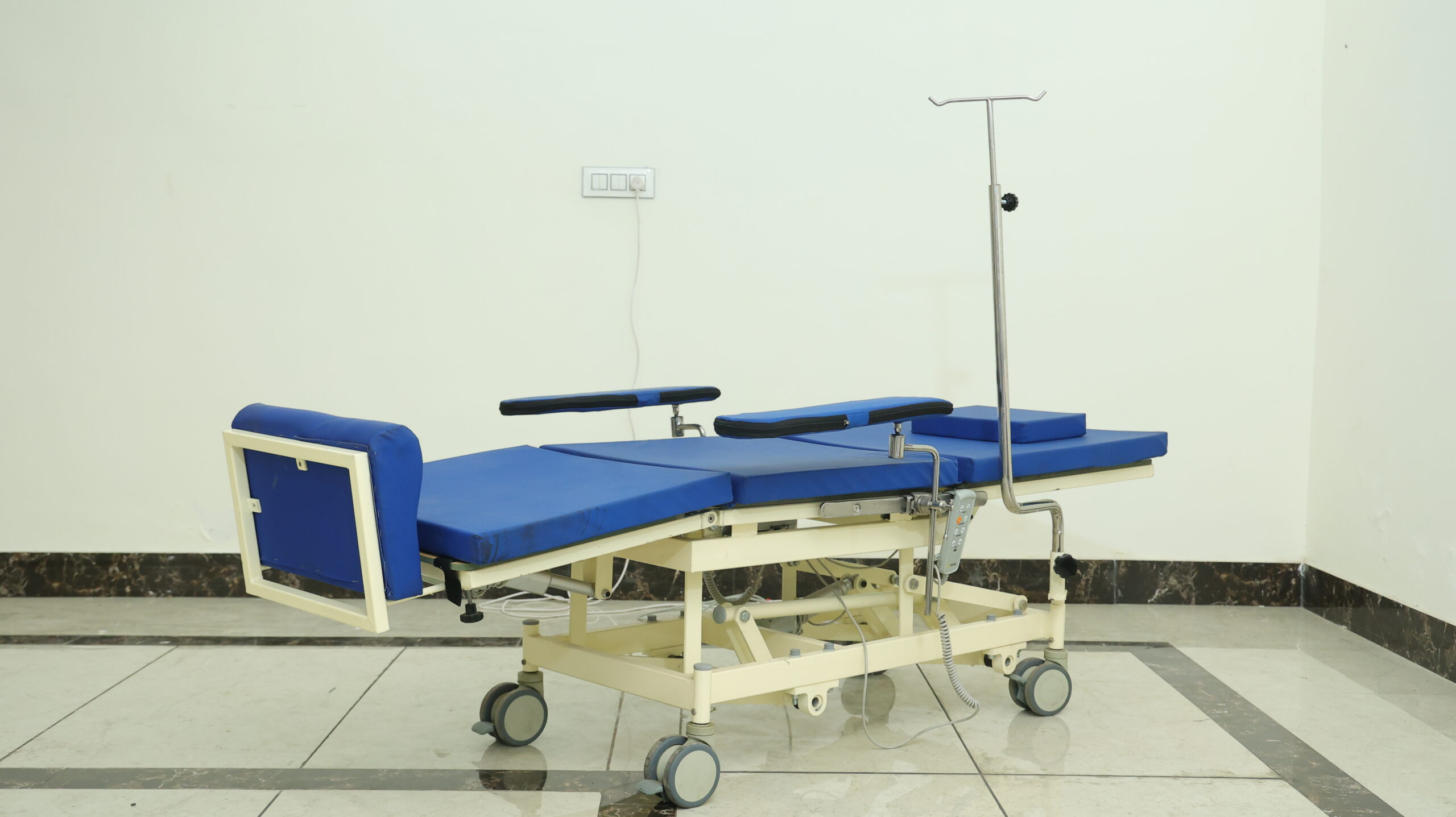

Electrically Powered Medical Chair

Designed for patient comfort and caregiver efficiency, this advanced medical chair is equipped with multiple actuators, ergonomic controls, and robust safety features. Ideal for hospitals, ICUs, and clinical environments.

Key Features:

• Electrically Operated with 3 actuators

• Dual Hand Controls (Nurse + Optional Patient control)

• Seat Height Adjustment: 550–900 mm

• Seat Width: 600–720 mm

• Length (Upright): 900–1000 mm

• Weight Capacity: Up to 300 kg

• Trendelenburg Position: Reached in 16 seconds

• Adjustable/Pivoting Armrests

• One-Touch CPR & Preset Position Functions

Electrical & Control System:

• Operates on AC and DC Power

• 8-Hour Battery Backup on full charge

• Indicators for Mains Power, Battery Status, and Service Error

• Integrated Telescopic IV Pole

Mobility:

• 4 Locking Castors or Central Locking System

Materials & Build:

• Vinyl Upholstery for easy cleaning and durability

• Seat Length: 450–550 mm

• Back Height: 700–850 mm

• Overall Width: 1000–1300 mm

Safety & Compliance:

• IEC 60601-1:2005 Compliant

  • Type B Protection Against Electric Shock

• CB6 Control Box: IPX6 Protection

• Actuators: IPX6 Rated

• Hand Controls (Nurse & Patient): IP54 Rated

• Battery: 24V, 1.2 Ah
