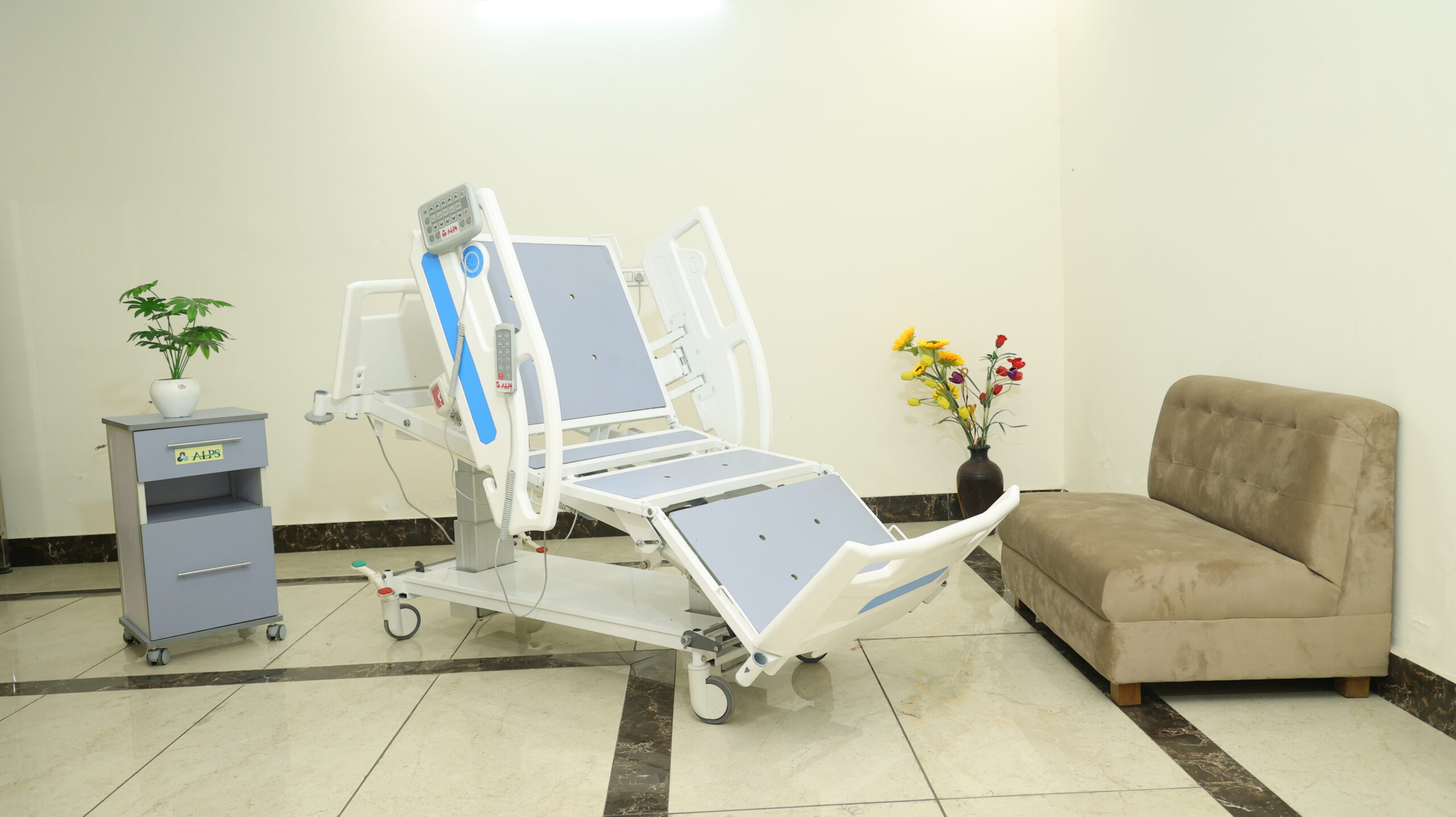

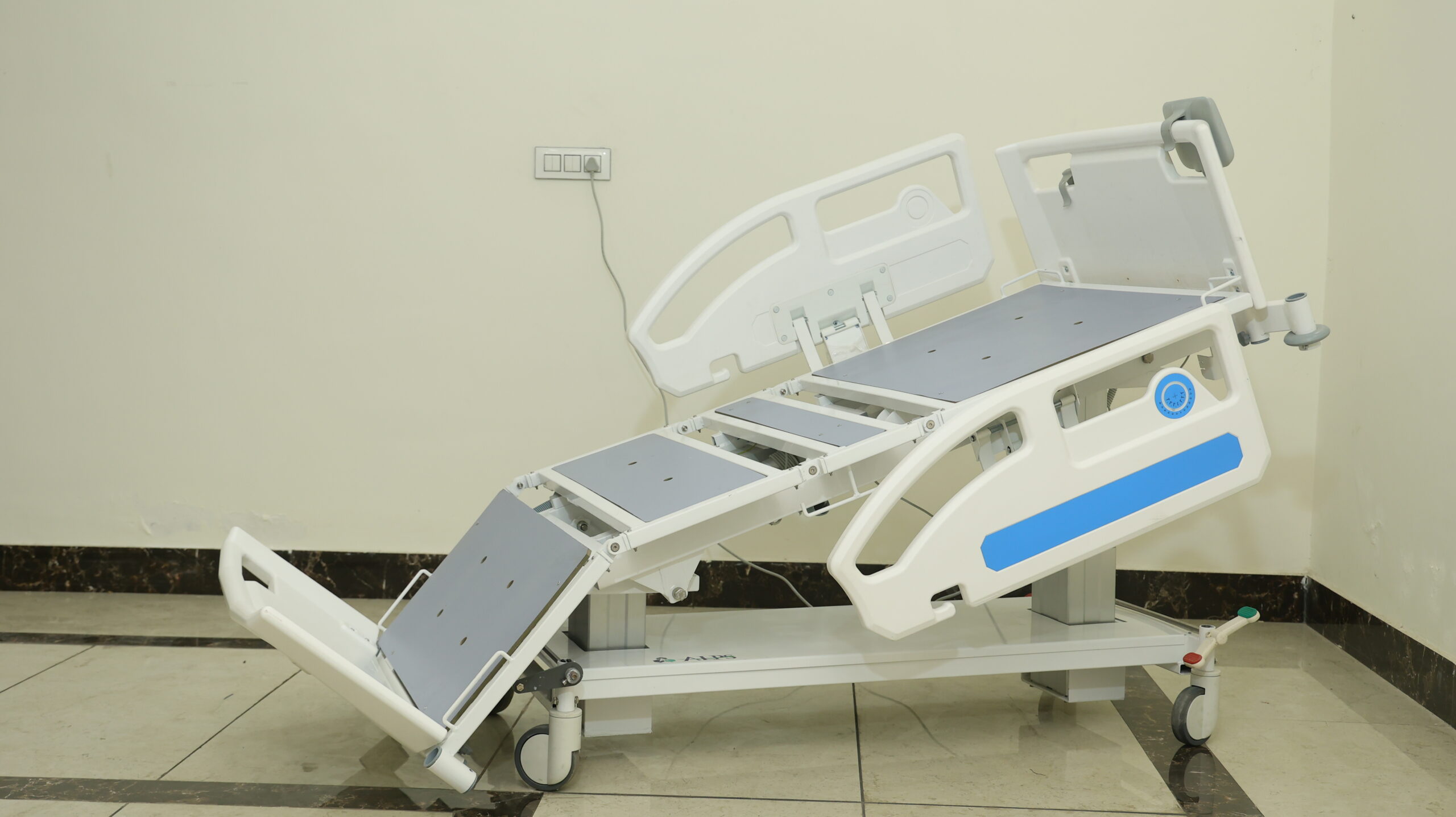

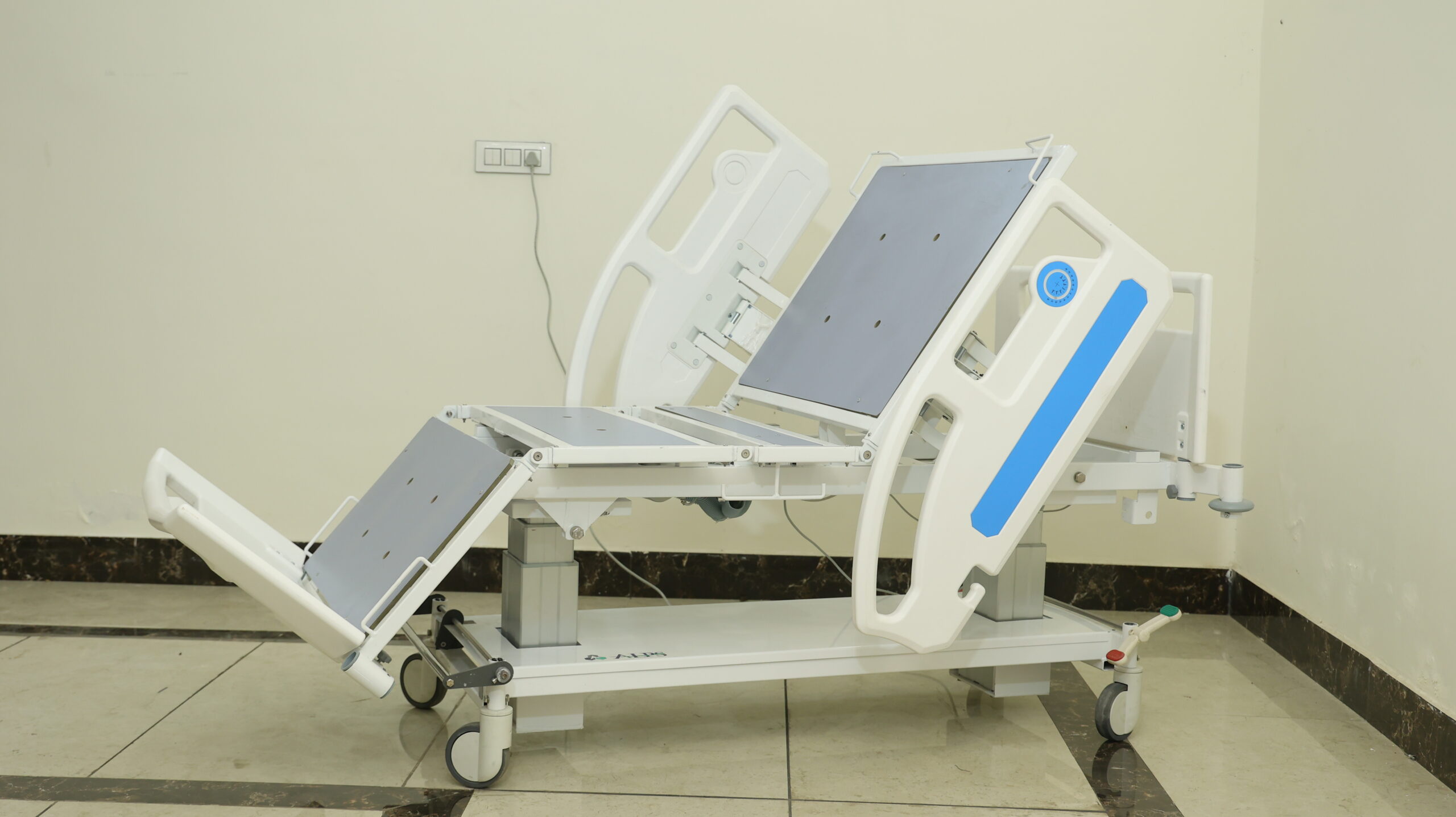

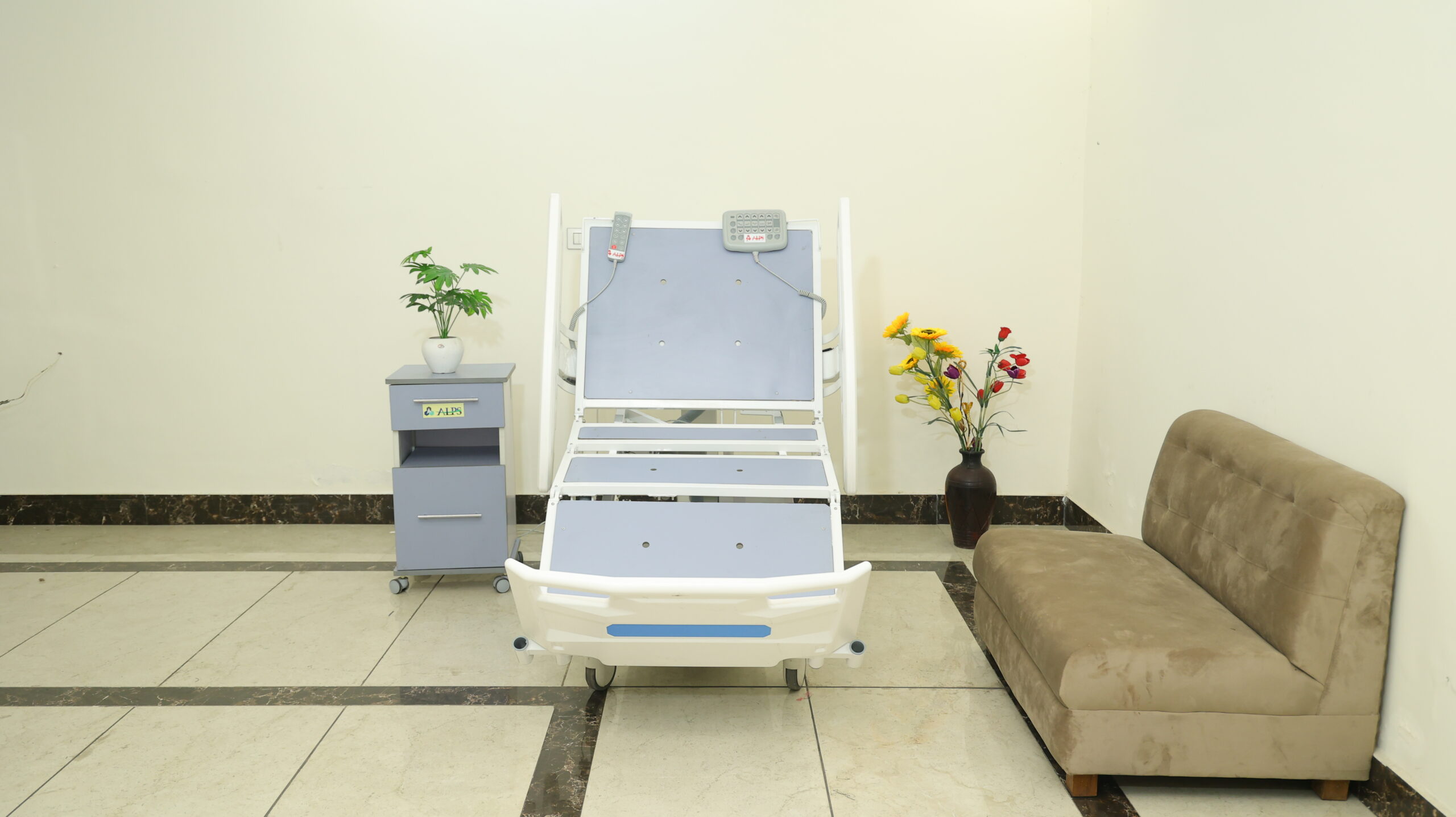

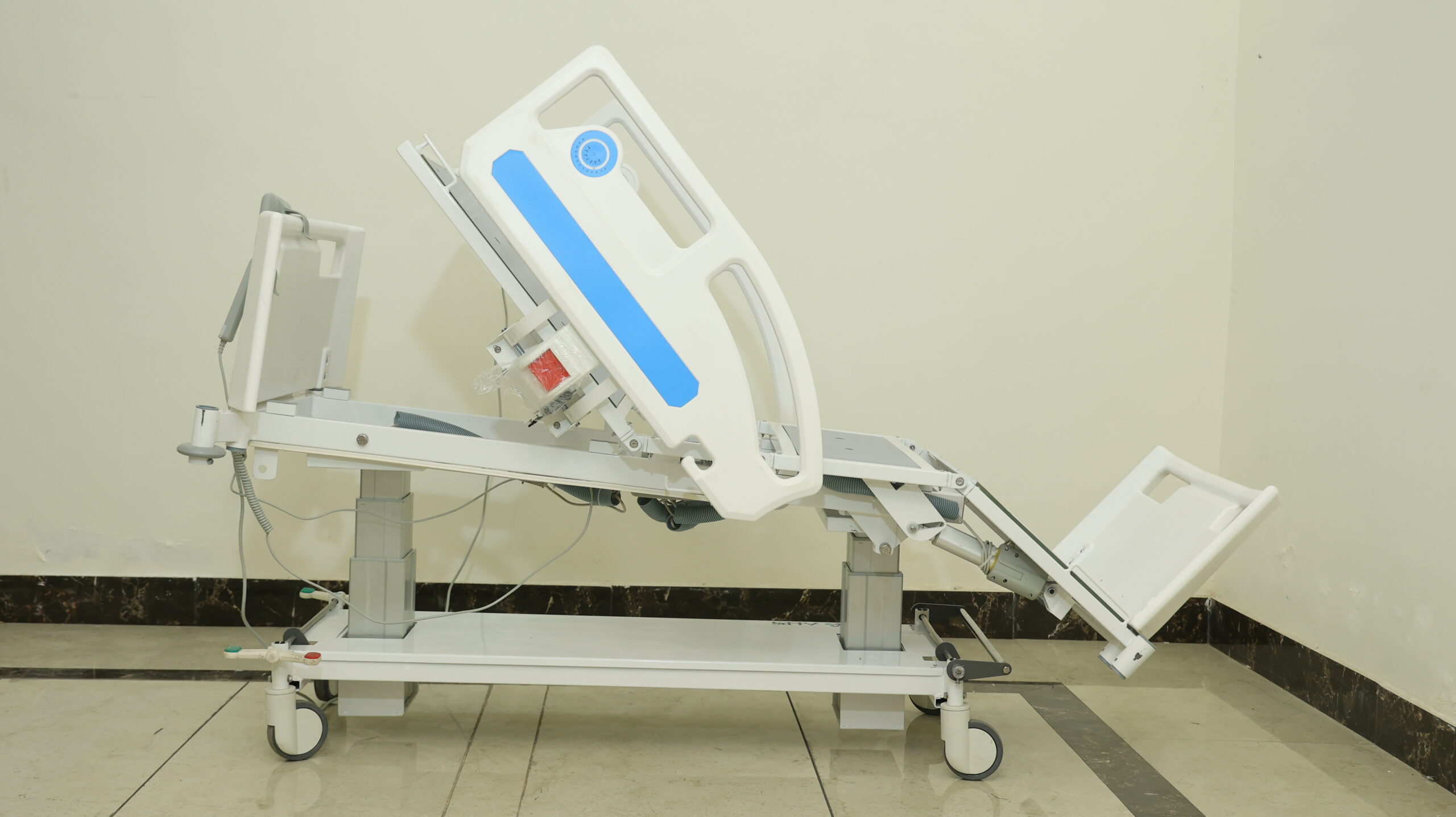

Evalia 4000 – Premium ICU Bed for Advanced Critical Care
The Evalia 4000 is a high-performance ICU bed tailored to meet the rigorous demands of critical care environments. Designed with a strong focus on patient safety, caregiver convenience, and ergonomic support, this bed delivers a sophisticated blend of technology, comfort, and efficiency. Ideal for intensive care units, the Evalia 4000 supports a wide range of clinical needs while ensuring patient dignity and operational ease for healthcare professionals.
Comprehensive Electric Operation (5+1 Functions)
The Evalia 4000 offers five primary electric adjustments plus a dedicated chair position, all easily managed via user-friendly hand and nurse control panels:
-
Adjustable from 0° to 75°, supporting respiratory function, patient comfort, and clinical access.
-
Knee Rest Elevation: 0° to 35° adjustment range for optimal leg positioning and improved circulation.
-
Height Adjustment: Bed height can be adjusted between 400 mm and 750 mm (±10 mm) to facilitate transfers, reduce fall risk, and support caregiver ergonomics.
-
Trendelenburg / Reverse Trendelenburg: ±17° tilt helps improve circulation, drainage, and various procedural requirements.
-
Auto Contour Function: Synchronizes back and knee rest movement, minimizing patient sliding and shearing forces during adjustment.
-
Chair Position: Converts the bed into a comfortable semi-sitting posture with knees lowered and back elevated. This position promotes recovery by supporting lung expansion, better digestion, and enhanced patient interaction. Safety is further reinforced by automatic knee gatch compensation, preventing patient sliding during transitions.
Construction & Build Quality
The Evalia 4000 is engineered with robust and hygienic materials suited for hospital-grade durability:
-
Frame: Fabricated from high-quality CRCA steel with epoxy powder coating, ensuring strength and corrosion resistance.
-
Mattress Platform: A 4-section platform includes X-ray translucent zones in the backrest and pelvic sections, allowing imaging without transferring the patient.
-
Dimensions: Approximately 2200 mm (L) × 1050 mm (W), designed to accommodate standard mattresses and patient needs.
-
Safe Working Load: Rated for ≥ 275 kg, supporting a wide patient population safely.
-
Head & Foot Boards: Molded from ABS plastic, they are removable and secured with safety locks for quick access during emergencies.
-
Side Rails: Available in 2-piece or 4-piece full-length collapsible ABS rails, supported by gas spring mechanisms for smooth operation.
-
Corner Bumpers: Heavy-duty PVC bumpers provide protection during transport or collisions.
-
IV Pole: Constructed from stainless steel, adjustable in height, and fitted with four hooks for infusion management.
Superior Mobility Features
Patient transfers and bed positioning are made easier with the Evalia 4000’s advanced mobility systems:
-
Castors: Equipped with 150 mm heavy-duty central locking castors, configured for diagonal or 4-point braking for total control and stability.
-
Fifth Wheel: A 360° rotating wheel enables effortless navigation in confined or crowded areas, improving maneuverability in high-pressure clinical settings.
Intelligent Control Interfaces
Managing bed functions is effortless with dual intelligent control systems:
-
Handset Remote: Ergonomically designed, backlit, and equipped with lock-out functions to prevent accidental operation.
-
Nurse Control Panel: Embedded into the side rails, programmable with priority control access, offering complete operational authority to caregivers.
-
Electric CPR: One-touch flattening of the bed for emergencies.
-
Manual CPR: Quick-release gas spring mechanism on the backrest for non-electric backup.
Integrated Advanced Features
To support clinical efficiency and patient comfort, the Evalia 4000 includes numerous modern enhancements:
-
Weighing Scale (Optional): Integrated digital scale with ±200 g accuracy for real-time patient weight monitoring.
-
Under-bed Light: Motion sensor-activated lighting aids safe nighttime movement and reduces fall risk.
-
Battery Backup: Provides up to 2 hours of operation during power outages, ensuring uninterrupted care.
-
X-ray Cassette Holder: Built-in backrest holder allows seamless radiographic imaging at bedside.
-
Urine Bag Holder: Convenient and hygienic standard attachment.
Safety Standards & Certifications
Safety and compliance are paramount in critical care:
-
Electrical Safety: Fully compliant with IEC 60601-1 standards, ensuring electromagnetic compatibility and patient safety.
-
Fire Retardant Materials: All components meet fire safety regulations.
-
Shockproof Housing: ABS enclosures for motors and electronics enhance electrical insulation and patient safety.
-
Emergency Trendelenburg: Instantly activated from the nurse control panel for life-saving interventions.
Conclusion
The Evalia 4000 ICU bed is a next-generation solution for intensive care, where advanced functionality, patient safety, and clinician efficiency must converge. Its robust build, intelligent control systems, mobility innovations, and optional clinical features make it the ideal choice for hospitals seeking to elevate their critical care infrastructure.
